LUCI Knowledge Base

Options / Preferences

This Options dialog is composed into 5 sections:

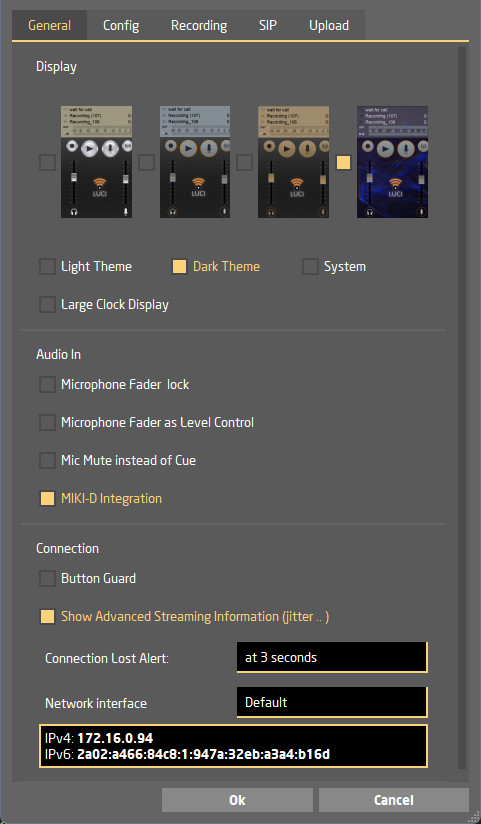

General


Display
Select out of 4 different Main window themes, the first one being the Classic Luci theme. Either with Light, Dark  or following the Systems Dialog Theme
Large Clock Display
Adds a large clock on the main screen.
Microphone Fader lock
You can enable this to prevent changing the microphone gain accidentally.
Microphone Fader a Level Control
When selected the Microphone fader will have a range from -oo to +20 dB in stead of the standard -20 dB to + 20 dB. Used for fade outs.
Mic Mute instead of Cue
This will change the behaviour of pressing the little microphone icon below the slider on the main screen to Mute.
MIKI-D Intergration
Set volume and monitor cue through the MIKI dsp, to get minimal latency
Button Guard
This will prevent disconnecting accidentally by means of a double check dialog.
Display network jitter meters
Display meters indicating the jitter on the displays IN stream and, if supported by the receiver, on the OUT stream.
Connection Lost Alert
To have an audio signalling when the connection is lost. Set it to OFF or after a number of seconds that the connection is lost.
Network interface
Choose the network card you want to use (Default selects the Systems choice).

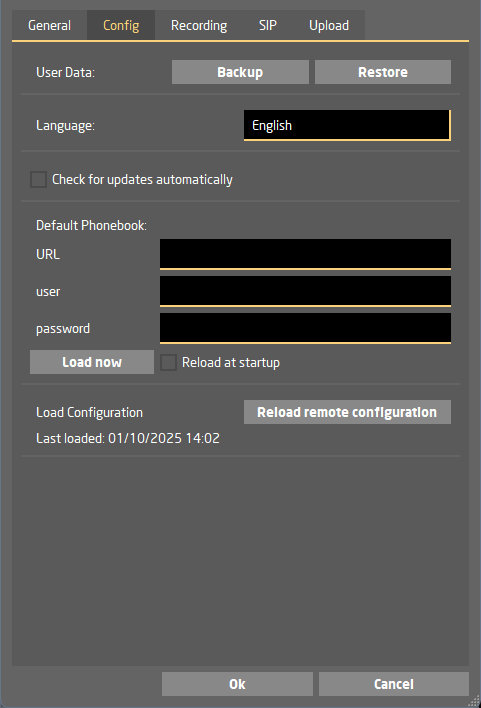

Config


Backup/Restore User Data
You can save all of your License & Settings data to a compressed zip Archive, and restore it at will.
See section “Backup or Restore your Settings” for more detail.
Language : change the applications language to your preferred language
Check for updates automatically
It will alert you of an update and its changes.
Phonebook : With this function a CSV-formatted phonebook can be loaded automatically into your LUCI LIVE app from any internet location. As ‘Address’ fill in the URL where the file can be found, for example: luci.eu/example.csv
If the internet is a secure site also fill in the user and password to access the file. To load ( and test the url ) you can use Load now.  If you always want an up to date phonebook check the Reload at startup option.

@ Recording


Default recording location : change the location where the recordings are stored on your device, or where to get the files for playing.
Recording Mode
Having 6 options, record only the direct audio input, the audio as send through the OUT stream, the audio received through the IN stream, or both mixed or in separate channels or seperate files ( .in and .out files ).
Recording Channels
Normally the mono/stereo for the recording file is the same as set in the stations profile, but you can set it differently here.
Recording Format
The bit quality is set ( Note that not all audio interfaces have 24 bit ).
Auto Record
Record every connection into a separate file.
Auto load recordings for Playing
If you enable this, a newly recorded file will be automatically loaded, ready to be played.
Edit Fade Type
Sets the editing slope to a preferred value.
On leaving the Audio Editor…
Choose your preference, either automatically save the changes, or do not change the original recording file (use Save As or Render to make a changed copy), or ask with a confirmation dialog.

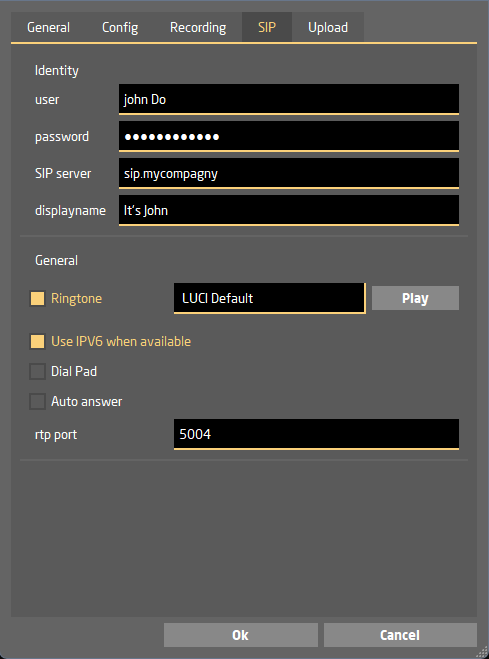

SIP

This submenu is used to setup general settings about your SIP connections. The Sip Identity settings are used to Register at the SIP server when choosing “Default User” at the Stations Profile settings.

user
Fill in the username you use to log in at your server.
password
Fill in your password belonging to your username.
server
Fill in the address of your SIP server.
displayname
You can also fill in a name that will be shown to the callee.
@ Dial number input
Checking this option will show a dial pad acces for direct SIP number input when registered.
Use IPV6 when available
LUCI is IPV6 compatible if your network supports it.
@ Auto answer
Check this option to automatically answer the incoming SIP call.
RTP port
Here you set the port to use for the SIP – RTP stream.

@ Upload

To be able to send your audio file through FTP, please fill in the URL of your FTP server*, your user name and password. You can also enter your reporter / author and organisations name and country code.

You can define more FTP servers to be available, press New Server to create one and fill in the credentials. Press Remove Server to remove the selected FTP server.

*When using a sFTP server you can have to begin the URL with sftp://

If you switch on FTP it will be shown as a publish options in the Tools menu, and in the ‘Edit’ screen.
